Command SJ-200F(T)-30L GMP Freeze Dryer

Name: Command SJ-200F(T)-30L
Brand: SJ

Inquiry

GMP Freeze Dryer

GMP Compliance 2.16m2 shelves load; Shelf Temp :-65C to 65C Vacuum Control ESignatures(21 CFR Part 11)

Model designation: SJ-200F(T)-30L is the primary public model. SJIA-200F(T)-30L may appear in factory records, nameplates, quotations, or earlier technical documents; both refer to the same SJIALAB equipment model.

Command SJ-200F(T)-30L overview

Command SJ-200F(T)-30L is a 2.16 m²-class GMP pharmaceutical freeze dryer and production lyophilizer for pilot production, process scale-up and controlled small-batch manufacturing. The standard planning basis uses eight 450 × 600 mm product shelves plus one radiant shelf; an alternative 450 × 720 mm shelf arrangement is available for project review.

Command OS2.1 supports recipe-based freeze-drying control, process monitoring and data handling. SCADA, electronic signatures, audit-trail functions and batch-reporting capabilities are optional and must be defined in the project URS and quotation.

Key features

GMP-oriented chamber, shelf, piping and control-system configuration for pharmaceutical and biotechnology applications.
Product shelf temperature control, vacuum management and condenser monitoring for repeatable lyophilization cycles.
Manual and automatic operating modes with recipe management, system alarms and historical process trending.
Optional SCADA functions can include controlled user access, electronic signatures, audit trails and batch reports for a 21 CFR Part 11-ready project configuration.
Suitable for vial lyophilization, bulk API, peptides, proteins, vaccines and other temperature-sensitive products after formulation- and cycle-specific assessment.

Technical configuration

The values below reproduce the current SJ-200F(T)-30L configuration basis in one aligned table. Final materials, utilities, shelf layout, component brands, documentation and performance acceptance criteria are confirmed against the buyer's URS and technical quotation.

Item	Specification / material	Quantity
Chamber and product shelves
Chamber	AISI 304L; AISI 316L optional	1
Product shelves	AISI 304L; AISI 316L optional	1 set
Standard shelf layout	450 × 600 mm; 8 product shelves + 1 radiant shelf	8 + 1
Alternative shelf layout	450 × 720 mm; project-specific option	7 + 1
Chamber door	Acrylic or stainless-steel door	1
Door locking	Safety-bolt locking system	1 set
Product sensors	Pt100	6
Thermal-fluid sensor	Pt100	1
Internal finish	Ra ≤ 0.4 µm	Planning basis
Equipment level	0.5 mm/m	Planning basis
Minimum shelf temperature	≤ -60°C; custom configuration to -70°C	Configuration
Maximum shelf temperature	+65°C	Configuration
Shelf temperature uniformity	±1°C after thermal balance	Acceptance basis
Shelf spacing	100 mm; top-stopper configuration 80 mm	Configuration
Chamber construction	Rectangular chamber; B1 cotton insulation; left- or right-hand opening; silicone-rubber door seal	Configuration
Condenser
Condenser material	AISI 304; AISI 316 optional	1
Condenser coil	Internal coil or round external-coil configuration	1
Condenser sensor	Pt100	1
Minimum condenser temperature	≤ -85°C	Configuration
Ice capacity in 24 hours	20 kg/24 h	Planning basis
Maximum condenser frosting capacity	30 kg/batch	Planning basis
Condenser type	Round	1
Refrigeration system
Compressors	Bitzer 4DES-5Y or similar	2
Refrigerant	R507 + R508B	As required
Oil separator	Emerson	1
Pressure protection	Danfoss automatic protective devices	2
Pressure gauges	REFCO	3
Expansion valves	Danfoss	4
Shelf cooling time, unloaded	+20°C to -40°C in ≤ 60 minutes	Test condition
Condenser cooling time, unloaded	+20°C to -40°C in ≤ 30 minutes	Test condition
Vacuum system
Vacuum pump	DRV40	1
Pump isolation valve	Electric valve	1
Vacuum gauges	Posifa	2
Final vacuum	≤ 1 Pa	Acceptance basis
Evacuation time	Atmospheric pressure to 20 Pa in ≤ 30 minutes	Test condition
Vacuum leakage rate	5 × 10^-3 Pa·m³/s	Acceptance basis
Thermal-fluid circulation
Circulation pump	Grundfos	1 set
Thermal fluid	5 cSt Dow Corning silicone oil, low viscosity	As required
Heaters	2,000 W each	2
Plate heat exchangers	Project configuration	2
Thermal-fluid sensor	Pt100	1 set
Heating rate	1°C/min	Planning basis
Controls, electricity and installation
Control platform	Siemens S7-200 PLC; Command OS2.1 interface	1 set
Electrical components	Schneider breaker and AC contactor	Project set
Operating modes	Manual and automatic freeze-drying; recipe management	Included
Total electrical load	15 kW; 380 V, 50 Hz, 3-phase, or 220-240 V 3-phase configuration	Site-specific
Machine construction	Wall-mounted, GMP-oriented configuration	1 system
Approximate weight	1,500 kg	Planning basis
Suggested raw-material load	20 kg/batch	Application-dependent
Documentation
Standard documentation	Operation manual; maintenance manual; wiring drawings; main-component instructions	1 set
Qualification documentation	IQ/OQ/PQ documentation scope to be defined in the project quotation	Optional scope

SJ-200F(T)-30L product views

These images show SJ-200F(T)-30L equipment configurations for visual reference. Final door, shelf, stoppering, instrumentation and utility arrangements depend on the approved project configuration.

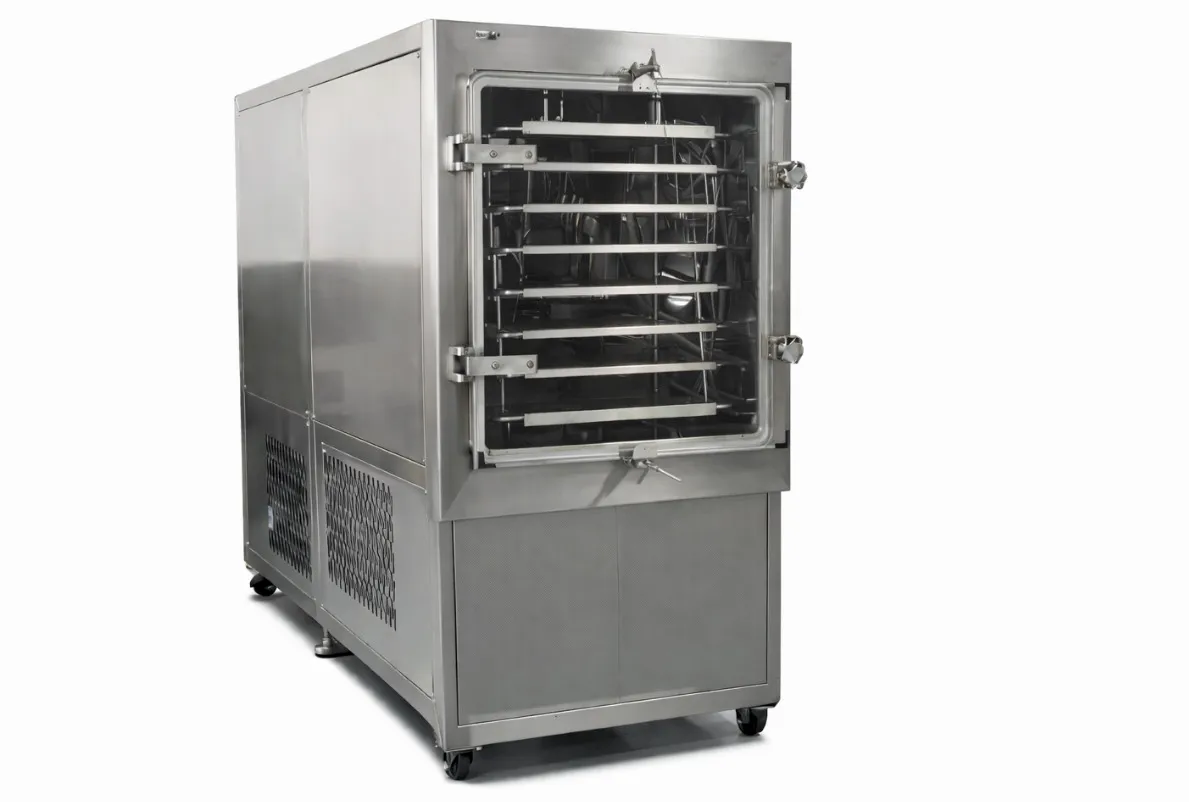

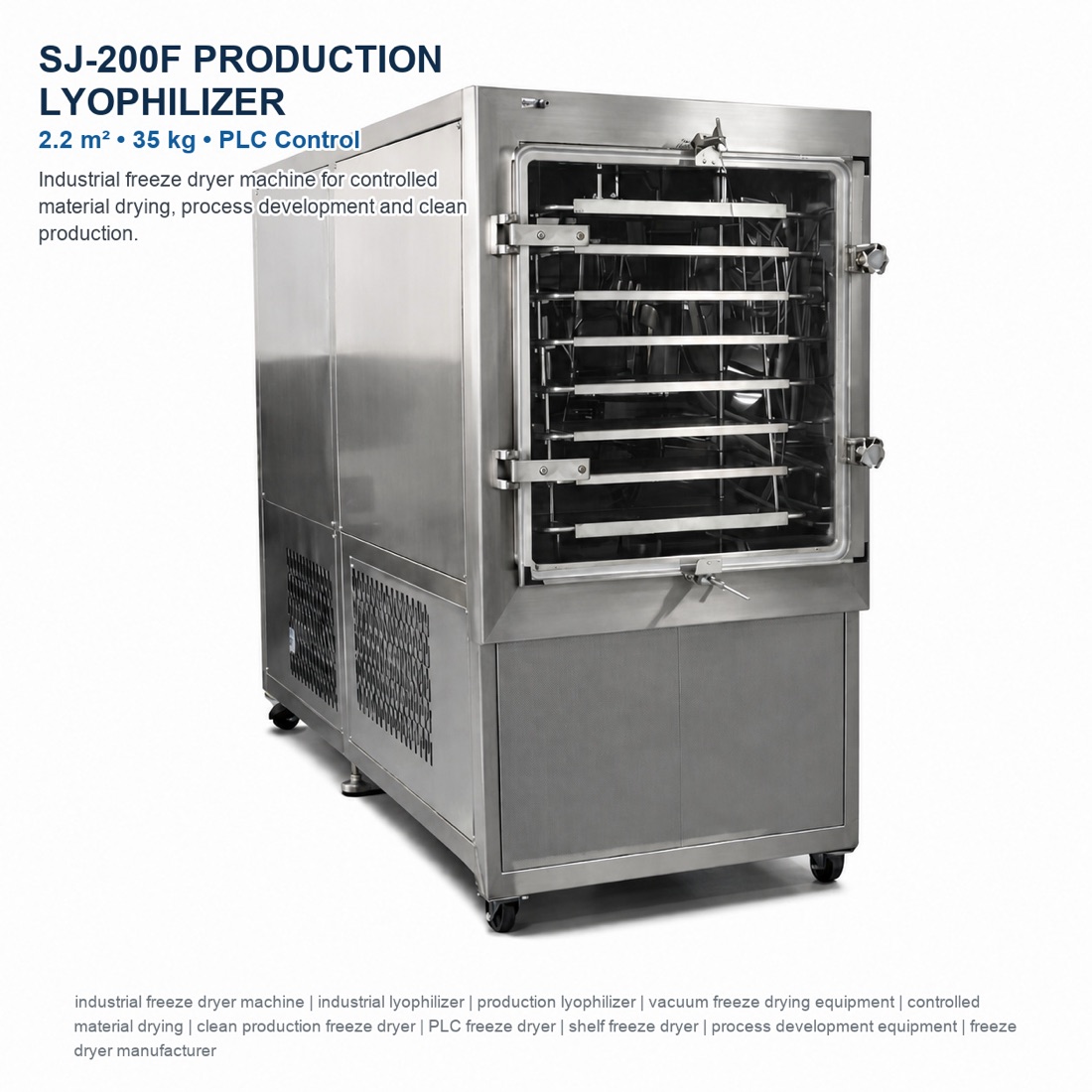

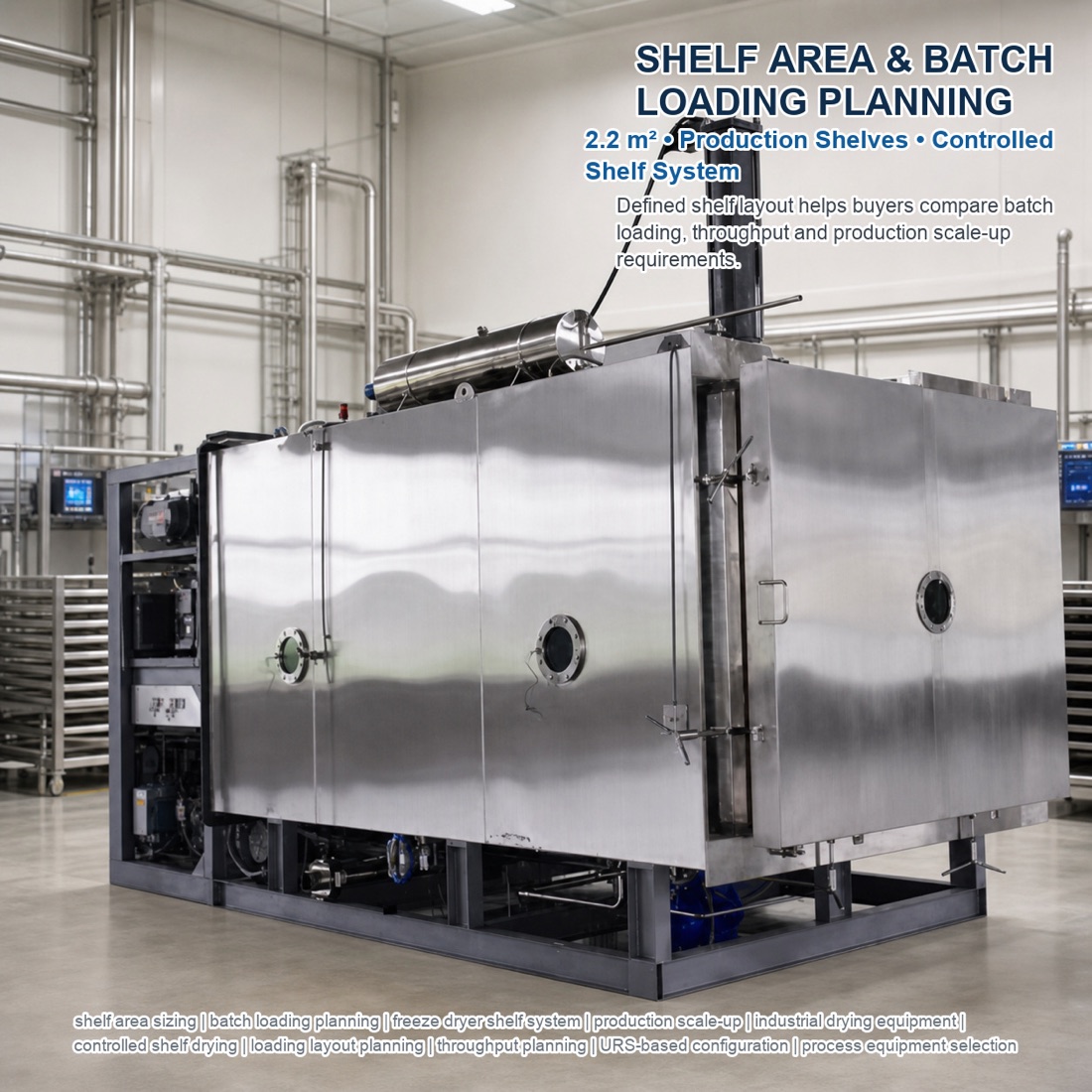

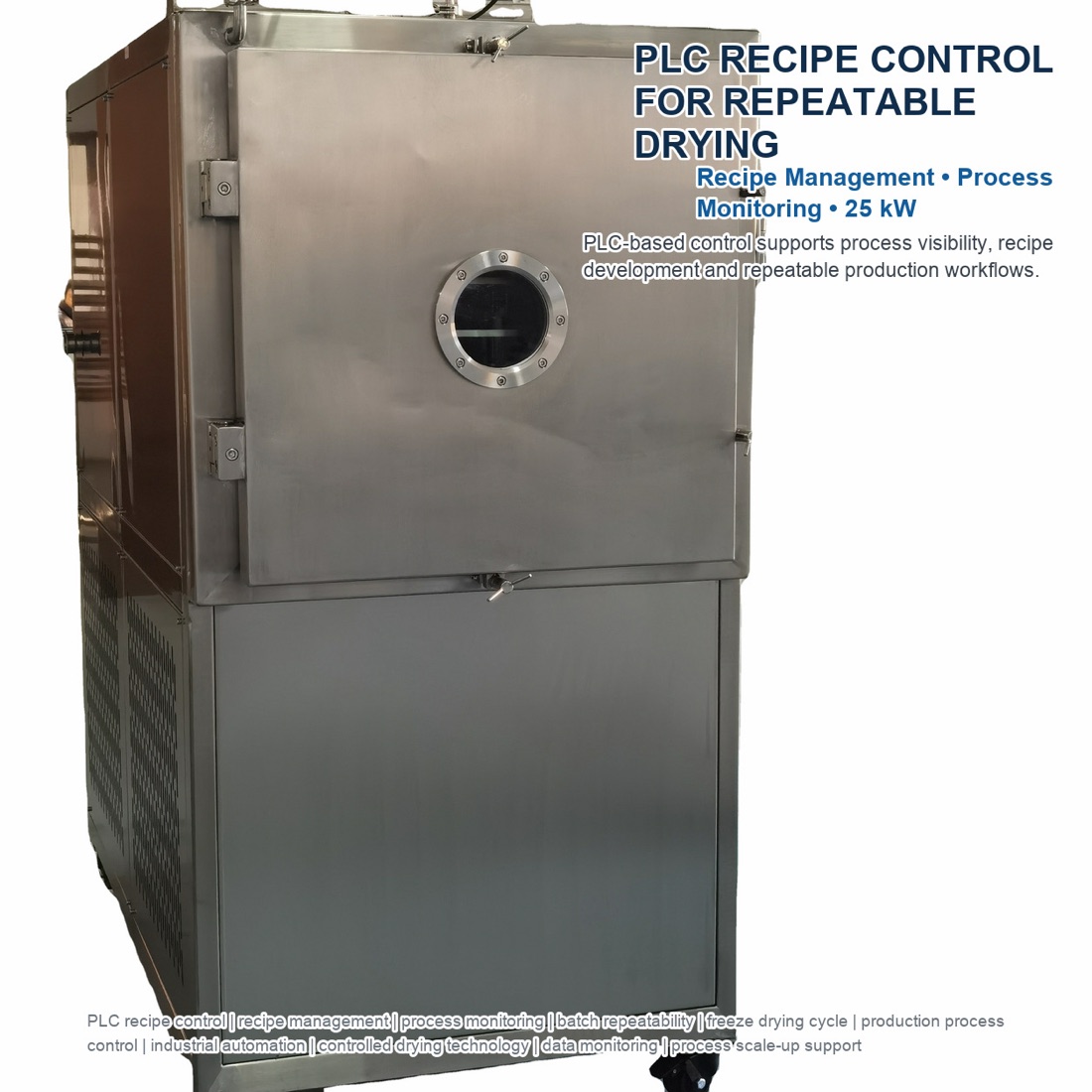

Command SJ-200F(T)-30L GMP pharmaceutical freeze dryer shown with open and closed chamber door — SJ-200F(T)-30L open- and closed-door equipment views.

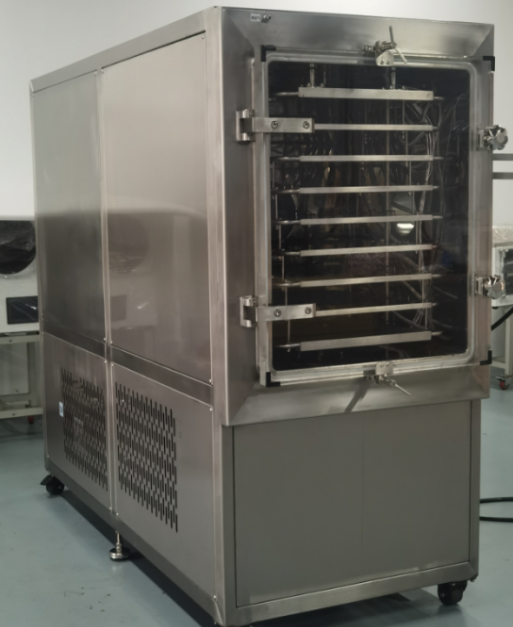

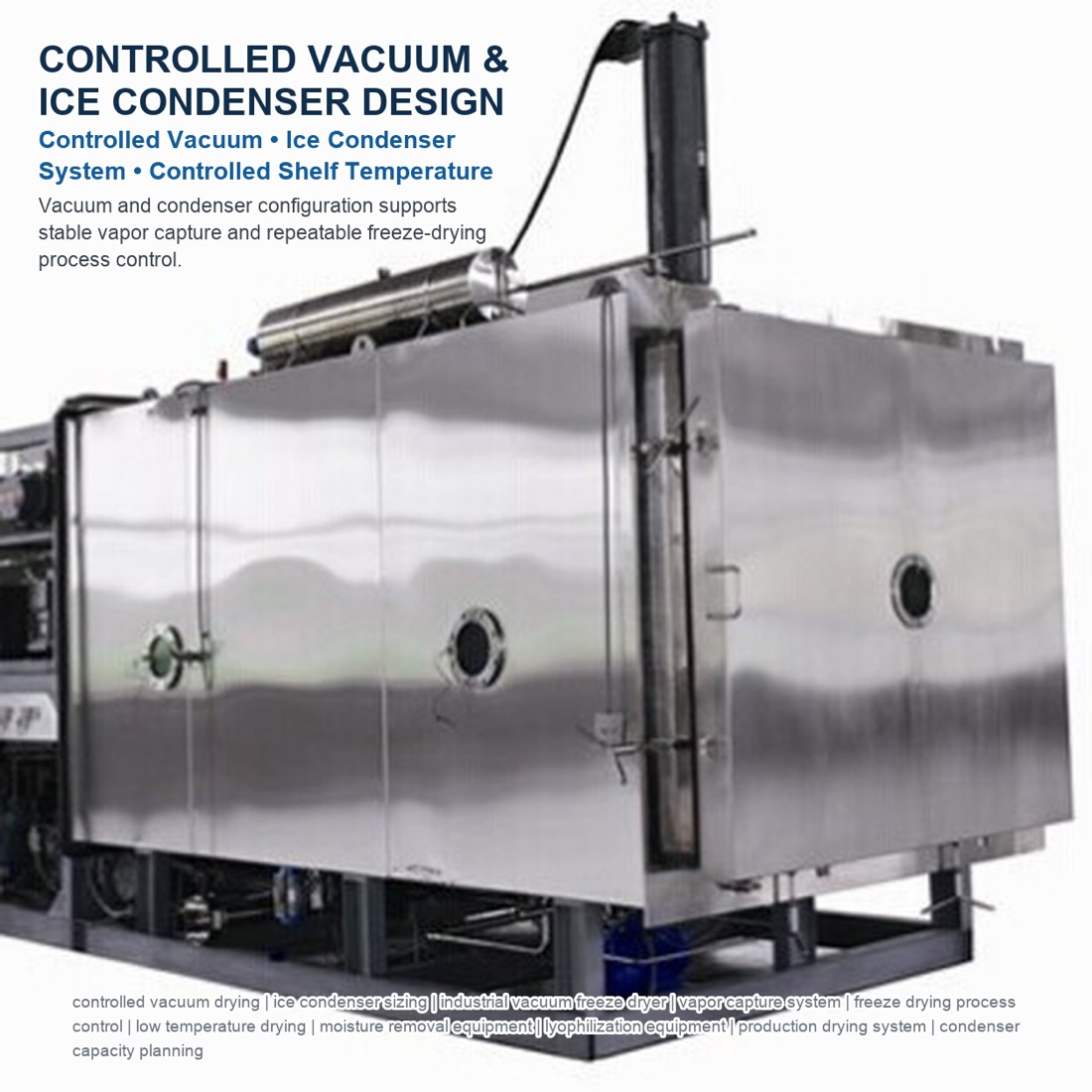

SJ-200F(T)-30L production lyophilizer equipment reference in the workshop — SJ-200F(T)-30L workshop equipment reference.
