Command SJ-100F(T) GMP Freeze Dryer

Name: Command SJ-100F(T)
Brand: SJ

Inquiry

GMP Freeze Dryer

GMP Compliance 1.0m2 shelves load; Shelf Temp :-65C to 65C Vacuum Control ESignatures(21 CFR Part 11)

Model designation: SJ-100F(T) is the primary public model. SJIA-100F(T) may appear in factory records, nameplates, quotations, or earlier technical documents; both refer to the same SJIALAB equipment model.

Command SJ-100F(T) overview

Command SJ-100F(T) is a 1.0 m²-class GMP-oriented pharmaceutical freeze dryer and vial lyophilizer for process development, clinical supply and small-batch production. The current configuration basis uses four 450 × 600 mm product shelves plus one radiant shelf.

The product-shelf, condenser and vacuum systems are integrated with Command OS2.1 recipe operation. Optional SCADA, electronic-signature, audit-trail and batch-report functions must be defined in the project URS and quotation.

Key features

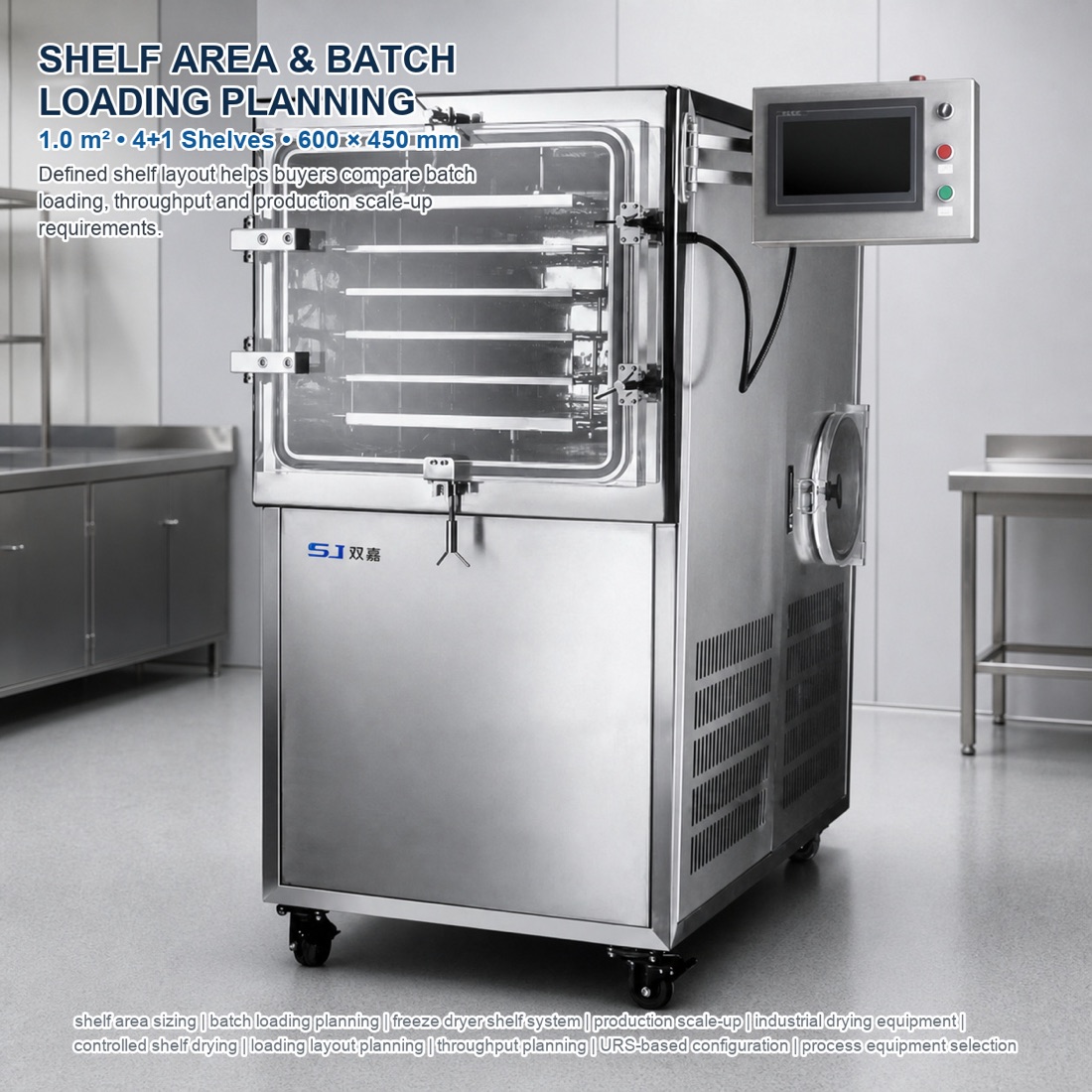

Four 450 × 600 mm product shelves for a nominal 1.08 m² loading surface.
Reference vial positions of up to 4,144 × Ø16 mm or 2,160 × Ø22 mm, subject to vial drawings and loading layout.
Shelf control below -60°C to +65°C, with project-specific configuration to -70°C.
Condenser planning basis of ≤ -85°C, 10 kg/24 h ice capacity and up to 15 kg/batch frosting capacity.
Optional top-stopper and 21 CFR Part 11-ready control functions are defined against the approved project scope.

Technical configuration

The values below reproduce the current SJ-100F(T) configuration basis in one aligned table. Final materials, utilities, shelf layout, component brands, documentation and performance acceptance criteria are confirmed against the buyer's URS and technical quotation.

Item	Specification / material	Quantity / status
Chamber and product shelves
Chamber	AISI 304L; AISI 316L optional	1
Product shelves	AISI 304L; AISI 316L optional	1 set
Shelf layout	450 × 600 mm; 4 product shelves + 1 radiant shelf	4 + 1
Reference vial positions	Ø16 mm: 4,144; Ø22 mm: 2,160	Layout-dependent
Chamber door	Acrylic or stainless-steel door	1
Door locking	Safety-bolt locking system	1 set
Product sensors	Pt100	4
Thermal-fluid sensor	Pt100	1
Internal finish	Ra ≤ 0.4 µm	Planning basis
Equipment level	0.5 mm/m	Planning basis
Minimum shelf temperature	< -60°C; custom configuration to -70°C	Configuration
Maximum shelf temperature	+65°C	Configuration
Shelf temperature uniformity	±0.5°C after thermal balance	Acceptance basis
Shelf spacing	100 mm; top-stopper configuration 80 mm	Configuration
Chamber construction	Rectangular chamber; B1 cotton insulation; left- or right-hand opening; silicone-rubber door seal	Configuration
Condenser
Condenser material	AISI 304; AISI 316 optional	1
Condenser coil	Internal coil or round external-coil configuration	1
Condenser sensor	Pt100	1
Minimum condenser temperature	≤ -85°C	Configuration
Ice capacity in 24 hours	10 kg/24 h	Planning basis
Maximum frosting capacity	15 kg/batch	Planning basis
Condenser type	Round	Configuration
Refrigeration system
Compressors	3 HP Tecumseh	2
Refrigerants	R507 + R508B	System charge
Oil separator	Emerson	1
Pressure protection	Danfoss	2
Pressure gauges	REFCO	3
Expansion valves	Danfoss	4
Unloaded shelf cooling	+20°C to -40°C in ≤ 60 min	Planning basis
Unloaded condenser cooling	+20°C to -40°C in ≤ 30 min	Planning basis

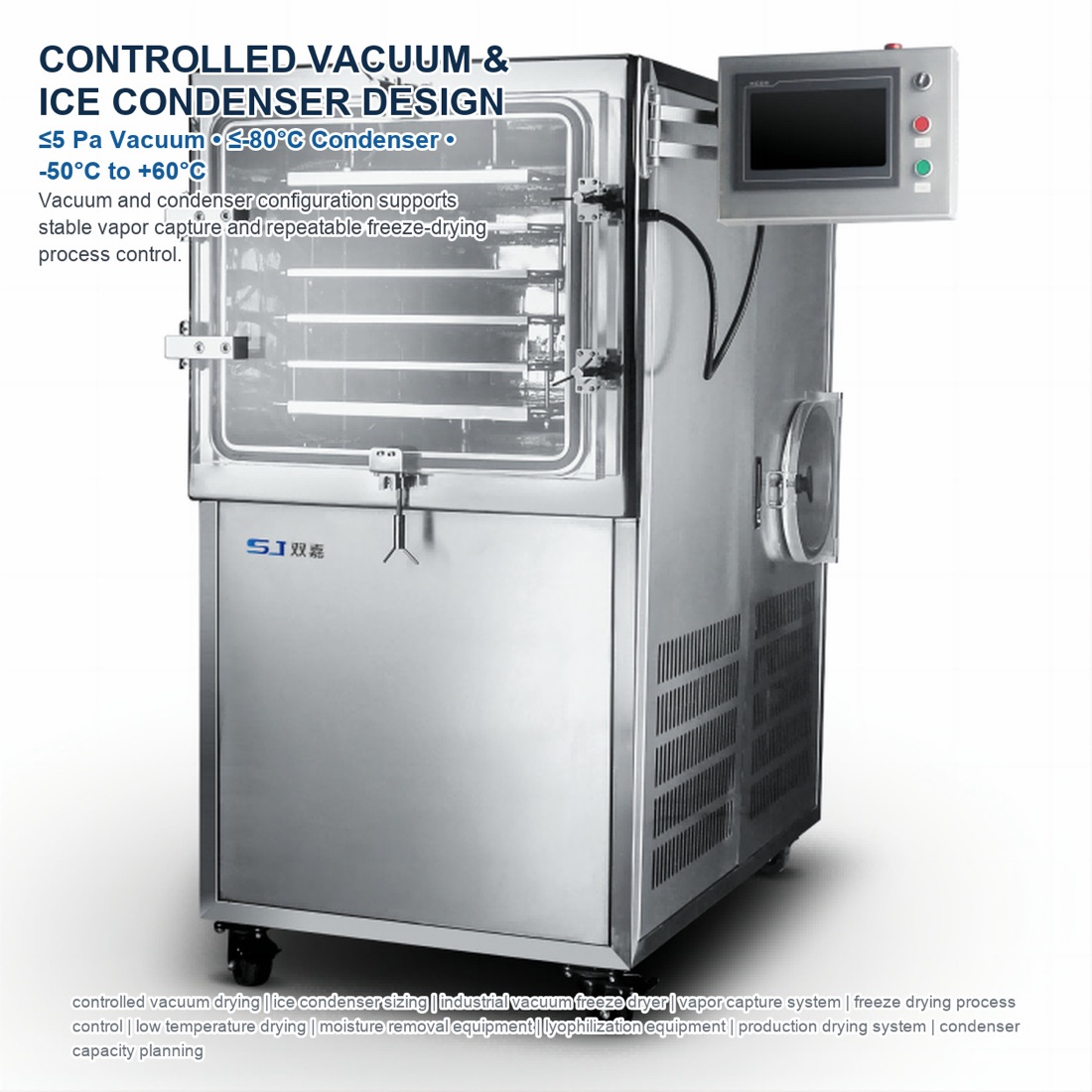

Vacuum system
Vacuum pump	DRV30	1
Pump isolation valve	Electric valve	1
Vacuum gauges	Posifa	2
Final vacuum	≤ 1 Pa	Planning basis
Evacuation time	Atmosphere to 20 Pa in ≤ 30 min	Planning basis
Leakage rate	5 × 10⁻³ Pa·m³/s	Acceptance basis
Thermal-fluid circulation
Circulation pump	Grundfos	1 system
Thermal fluid	5 cSt Dow Corning silicone oil, low viscosity	System charge
Heater	1,000 W	Configuration
Plate heat exchanger	Project configuration	Configuration
Thermal-fluid sensor	Pt100	1 system
Heating rate	1°C/min	Planning basis
Controls, electricity and installation

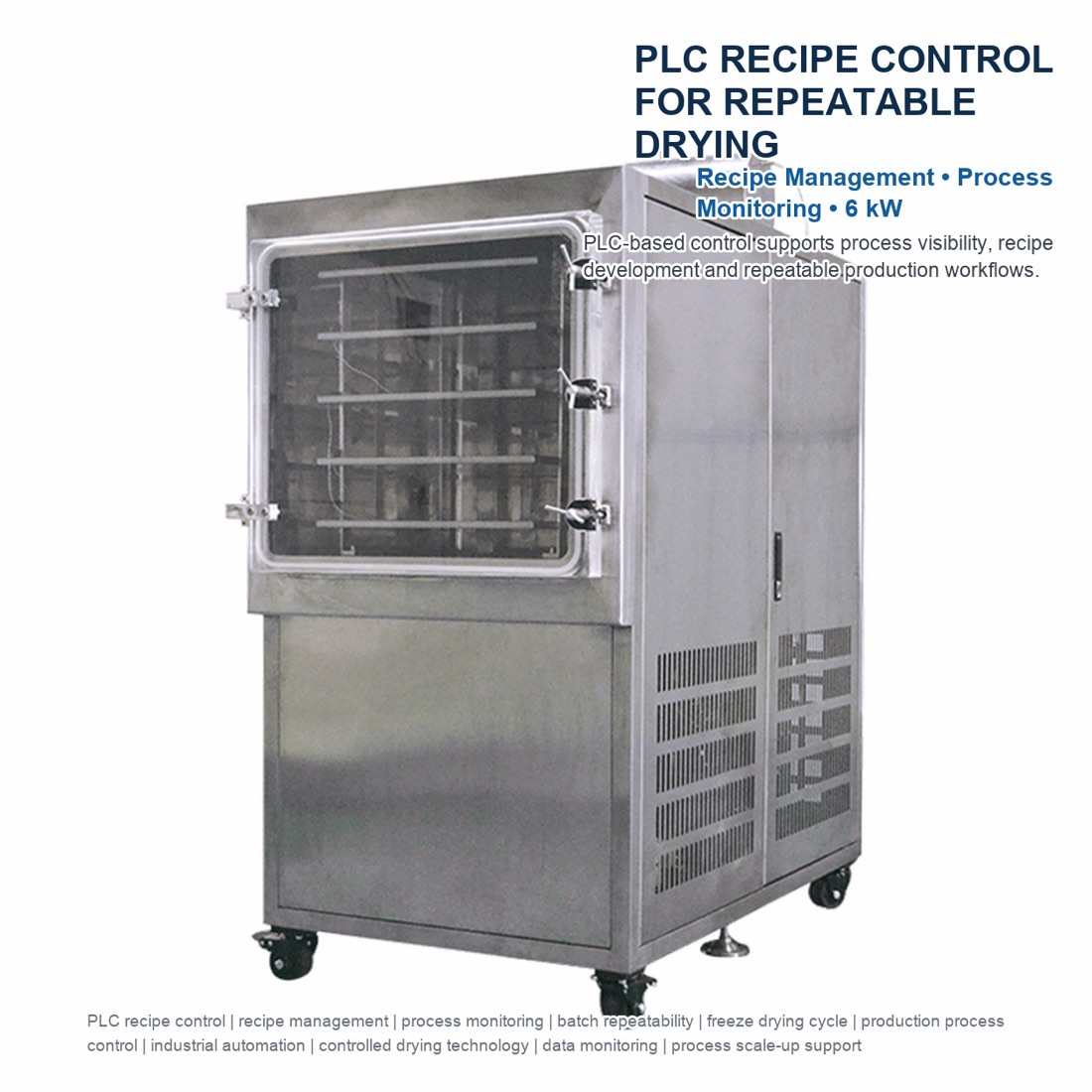

Control platform	Siemens S7-200 PLC; Command OS2.1 interface	1 set
Electrical components	Schneider breaker and AC contactor	Project set
Operating modes	Manual and automatic freeze-drying; recipe management	Included
Total electrical load	6.5 kW; 380 V, 50 Hz, 3-phase, or 220-240 V 3-phase configuration	Site-specific
Machine construction	Wall-mounted, GMP-oriented configuration	1 system
Approximate weight	650 kg	Planning basis
Suggested raw-material load	10 kg/batch; maximum reference 15 kg/batch	Application-dependent
Documentation
Standard documentation	Operation manual; maintenance manual; wiring drawings; main-component instructions	1 set
Qualification documentation	IQ/OQ/PQ documentation scope to be defined in the project quotation	Project-specific

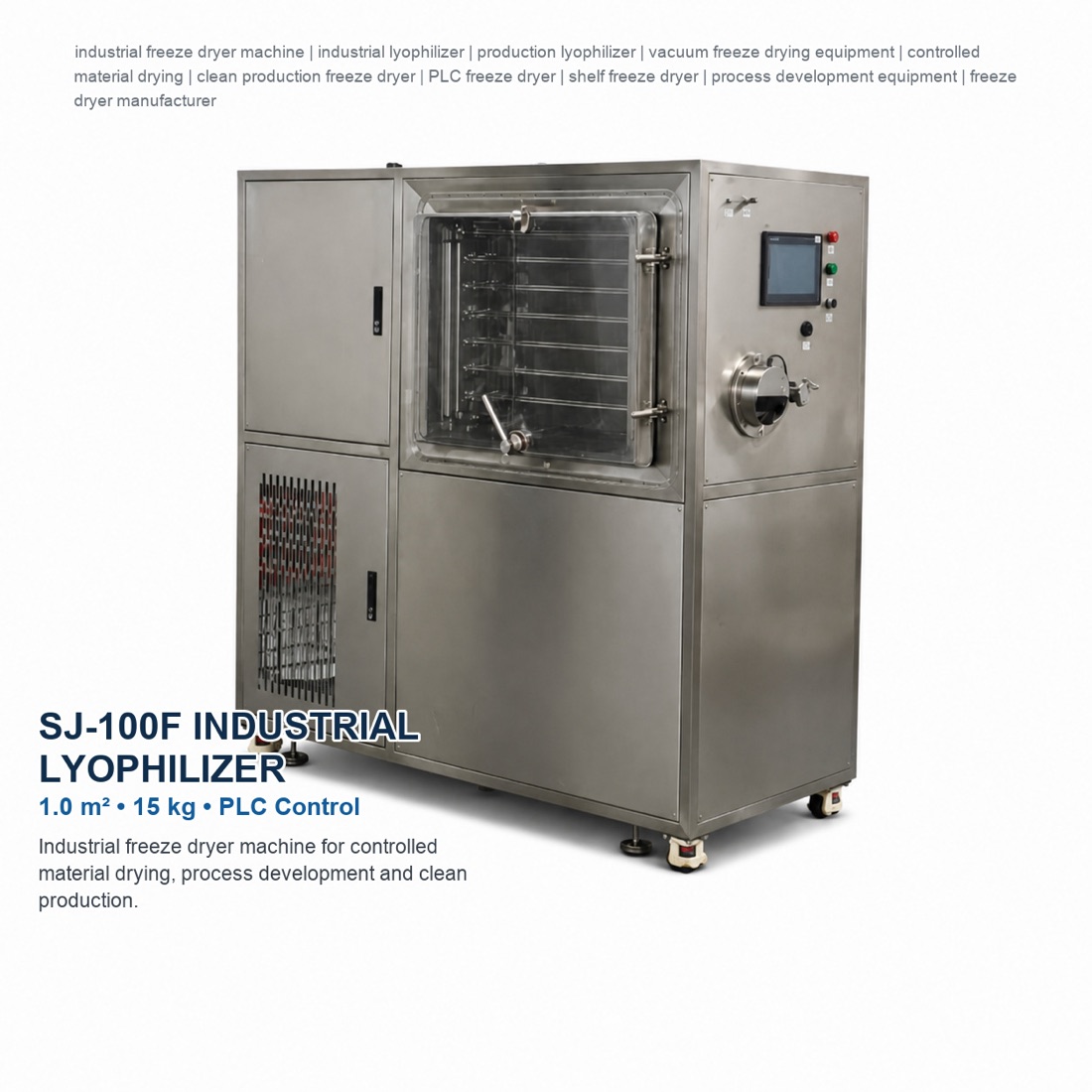

SJ-100F(T) product views

These images show SJ-100F(T) equipment configurations for visual reference. Final door, shelf, stoppering, instrumentation and utility arrangements depend on the approved project configuration.

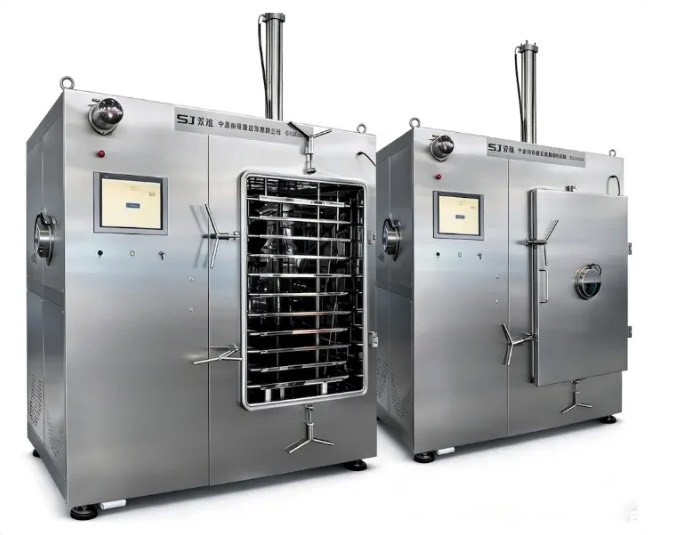

Command SJ-100F(T) 1.0 square metre class GMP pharmaceutical freeze dryer shown open and closed — SJ-100F(T) open- and closed-door equipment views.

Related GMP lyophilizer resources

For peptide, protein, vaccine or other vial products, Command SJ-100F(T) should be evaluated together with scale-up, stoppering, validation, data-integrity and batch-documentation requirements.

More Pictures for Reference

Application images and displayed values are planning references. Final shelf layout, loading basis, condenser capacity, utilities and project configuration are confirmed in the technical quotation.
