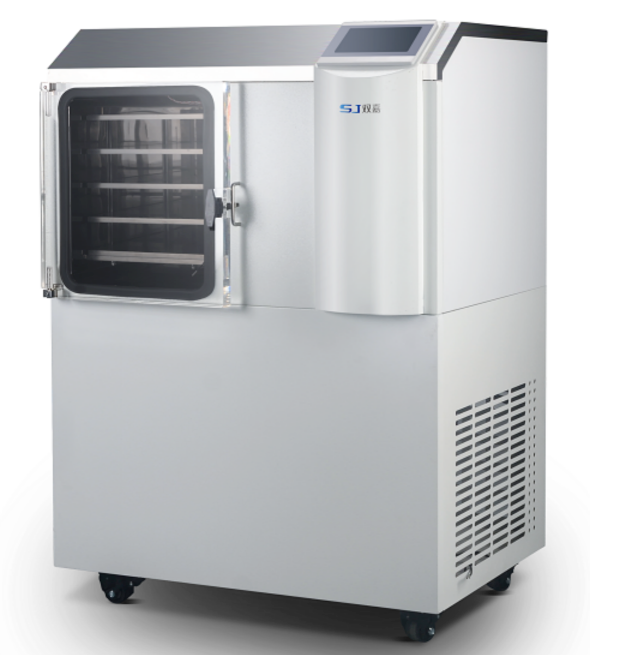

Creator 4S Research FD
Pilot Freeze Dryers
Temp control; Vacuum control; Freeze dryer Recipe. Temp ranged:-50 (or -60C)to 65C; shelf areas from 0.48 m²
Flexible Capacity: Ice condenser performance from 4 kg to 16 kg.
Precision Shelves: Temperature-controlled shelf areas from 0.12 m² to 1.2 m².
Advanced Monitoring: Full range of PAT tools for data-driven process optimization.
Custom Solutions: Tailored options to meet specific pharmaceutical and biotech requirements.

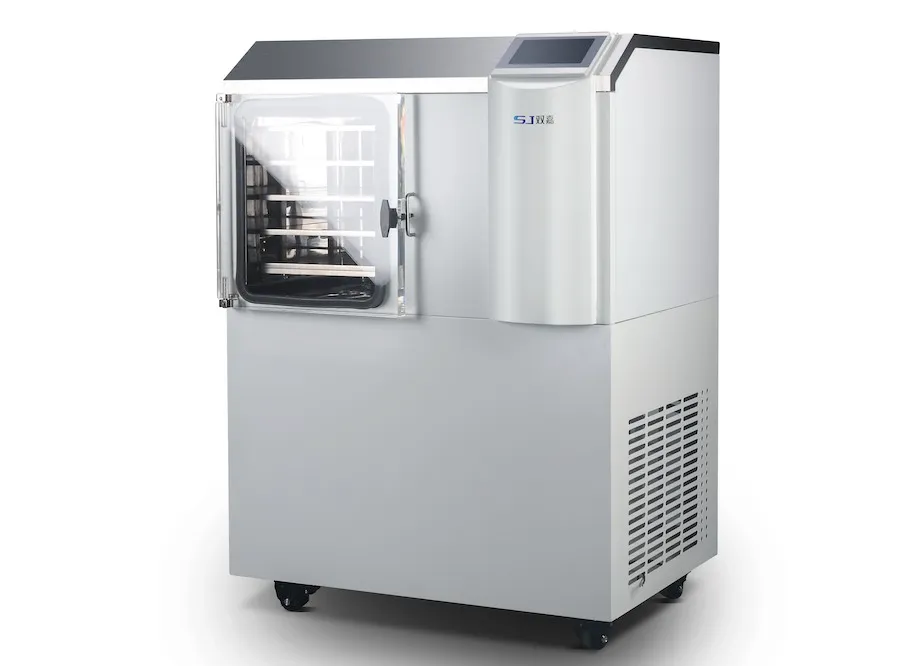

Creator 4S(Max)/T
Creator 4S(T) Creator 4S Max(T) Shelf Specification Shelf Size (mm) 300 × 400 (Top stoppering type: 250 × 450) 300 × 400 (Top stoppering type: 250 × 450) Number of Shelves 4 + 1 4 + 1 Shelf Temperature Control Range -50℃ to +60℃ -50℃ to +60℃ Lowest Shelf Temperature (50Hz/60Hz) ≤ -50℃ ≤ -60℃ Temperature Control Accuracy ±0.5℃ ±0.5℃ Shelf Cooling Rate (20℃ to -40℃) ≤ 60 min ≤ 40 min Shelf Temperature Uniformity ±1℃ ±1℃ Shelf Spacing 60 mm 60 mm Shelf Material SS304 (SS316 optional) SS304 (SS316 optional) Vial Loading Capacity (Dia.16mm) 1680 pcs 1680 pcs Vial Loading Capacity (Dia.22mm) 960 pcs 960 pcs Condenser Specification Lowest Condenser Temperature ≤ -65℃ ≤ -85℃ Condenser Cooling Rate (20℃ to -40℃) ≤ 30 min ≤ 30 min Ice Condensing Capacity in 24h 5 L 5 L Maximum Ice Capacity 8 L 8 L Condenser Surface Stainless steel coils Stainless steel coils Condenser Structure Separate condenser chamber Separate condenser chamber Refrigeration System Specification Compressor 1 × Tecumseh 2 × Embraco Compressor Power 3 HP 1.5 HP each Cooling Method Air cooling Air cooling Shelf Cooling Silicone oil circulation system Silicone oil circulation system Condenser Cooling Direct cooling Direct cooling Vacuum System Vacuum Gauge Thermocouple vacuum gauge Thermocouple vacuum gauge Optional CM Gauge Compare CM and Pirani pressure values to determine freeze-drying endpoint Same Ultimate Vacuum < 1 Pa < 1 Pa Vacuum Control Range 1 – 50 Pa 1 – 50 Pa Vacuum Control Mode Gas permeation control using solenoid valve + micro valve with automatic program control Same Vacuum Pump DRV16 (10m³/h) with oil mist filter DRV16 (10m³/h) with oil mist filter Circulation & Heating System Circulation Pump SJ stainless steel magnetic pump SJ stainless steel magnetic pump Heater 0.3kW ×2 (1 duty + 1 standby) 0.3kW ×2 (1 duty + 1 standby) Heater Protection Over-temperature protection Over-temperature protection Optional Top Stoppering System Available for vial stoppering Available Control System PLC PLC control system PLC control system Touch Display 7-inch touch screen 7-inch touch screen Control Modes Automatic / Semi-automatic / Manual Automatic / Semi-automatic / Manual Machine Specification Rated Power 3.5kW (50/60Hz, 220V–240V) 3.5kW (50/60Hz, 220V–240V) Machine Structure Integrated design (vacuum pump inside machine) Vacuum pump external type Machine Size (Approx.) W880 × D700 × H1220 mm W880 × D700 × H1220 mm Weight (Approx.) 300 kg 320 kg Package Size 940 × 1040 × 1440 mm 940 × 1040 × 1440 mm + vacuum pump package (690 × 270 × 290 mm) Other Requirements Contact us for more details Contact with us:
