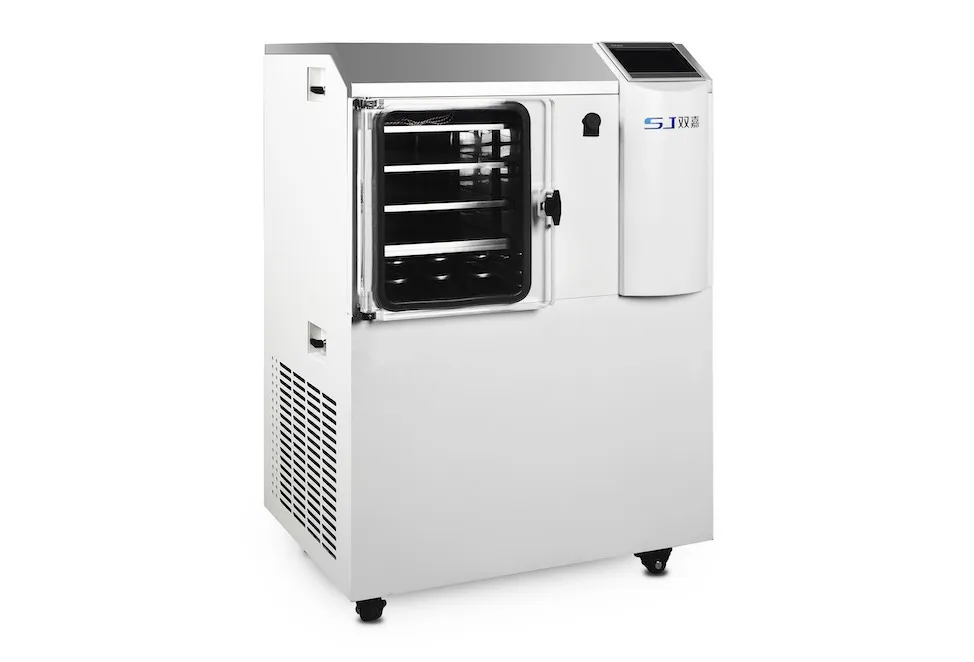

SJ-Creator 3S Pilot Freeze Dryer and Research Lyophilizer
Pilot Freeze Dryers
Creator 3S is a 0.36 m² pilot freeze dryer and research lyophilizer for process development, vial studies, and pilot scale-up. It supports programmable shelf temperature, vacuum control, and freeze-drying recipe management.
Model designation: SJ-Creator 3S is the primary public model. SJIA-Creator 3S may appear in factory records, nameplates, quotations, or earlier technical documents; both refer to the same SJIALAB equipment model.
Flexible Capacity: Ice condenser performance from 4 kg to 16 kg.
Precision Shelves: Temperature-controlled shelf areas from 0.12 m² to 1.2 m².
Advanced Monitoring: Full range of PAT tools for data-driven process optimization.
Custom Solutions: Tailored options to meet specific pharmaceutical and biotech requirements.
Flexible Capacity: Ice condenser performance from 4 kg to 16 kg.
Precision Shelves: Temperature-controlled shelf areas from 0.12 m² to 1.2 m².
Advanced Monitoring: Full range of PAT tools for data-driven process optimization.
Custom Solutions: Tailored options to meet specific pharmaceutical and biotech requirements.
Creator 3S(Max)/T
 | ||
Creator 3S(T) | Creator 3S Max(T) | |
Shelve Specification | ||
Shelf size(mm) | 300 x400 (Top stopper type 250×450) | 300 x400 (Top stopper type 250×450) |
No. of Shelves | 3+1 | 3+1 |
Shelf Temperature Control(°C): | -50℃ to 60℃ | -50℃ to 60℃ |
Lowest Shelf temperature(50Hz/60Hz,℃) | ≤-50℃ | ≤-60℃ |
Temperature Control Accuracy | ±0.5℃ | ±0.5℃ |
Shelf Temperature Cooling rate(from 20 to -40℃) | ≤60min | ≤40min |
Shelves Temperature uniformity(°C) | ±1℃ | ±1℃ |
Shelves distance | 60mm | 60mm |
Material of Shelves | SS 304(SS316 optional) | |
Vials load capacity(dia 16mm) | 1350pcs( Top stopper type is 1200) | |
Vials load capacity(dia 22mm) | 702pcs( Top stopper type is 660) | |
Condenser specification | ||
Condenser Lowest Temperature ℃ | ≤-65℃ | ≤-85℃ |
Condenser Temperature Cooling rate(from 20 to -40℃) | ≤30min | ≤30min |
Ice capacity in 24h (L) | 4 L | 4 L |
Max ice condenser (L) | 6L | |
Condenser surface | - | - |
Condenser struction | Stainless Coils | Stainless Coils |
Refrige System Specification | ||
Compressor | 1 pc Tecumseh | 2 pc embraco |
Compressor power | 2HP | 1HP/ pc |
Cooling | Air cooling | |
Shelves Cooling | silicon oil recycling (5cs) | |
Condenser cooling | Direct cooling | |
Vacuum system | ||
Vacuum Gauge | thermocouple vacuum gauge | |
*optional CM gauge | The pressure difference between the CM and the Pirani to determine the end point of freeze-drying | |
Lowest Pressure | <1 Pa | <1 Pa |
Vacuum control range | 1 to 50 Pa | 1 to 50 Pa |
Vacuum Control mode | Gas permeation mode: solenoid valve + micro valve,automatic program control. | |
Vacuum pump | DRV 10 (10m³ /h) with Mist Filter | |
Recycling system and Heating | ||
Recycling pump | SJ stainless magnetic pump | |
Heater | 0.3kw *2(One main and one backup) | |
Heater protection | Over heater protecter | |
*top stopper system optional | for loading vials | |
Control system | ||
PLC | PLC | |
Touch display | 7 inch touch display | |
Control | Auto/Semi Auto/Manually | |
Machine equipment | ||
Rated power | Required 2.6kw(50/60hz，220V-240V) | Required 3.2kw(50/60hz，220V-240V) |
Mashine struction | Integrated (with the vacuum pump inside the machine). | vacuum pump outside the mashine |
size（mm): | (Appro)W880*D700*H1220 vacuum pump inside | (Appro)W880*D700*H1220 vacuum pump inside |
weight(Kg): | (Appro) 300 kg | 320kg |
Other requirement | Contact us for more detail | Contact us for more detail |
