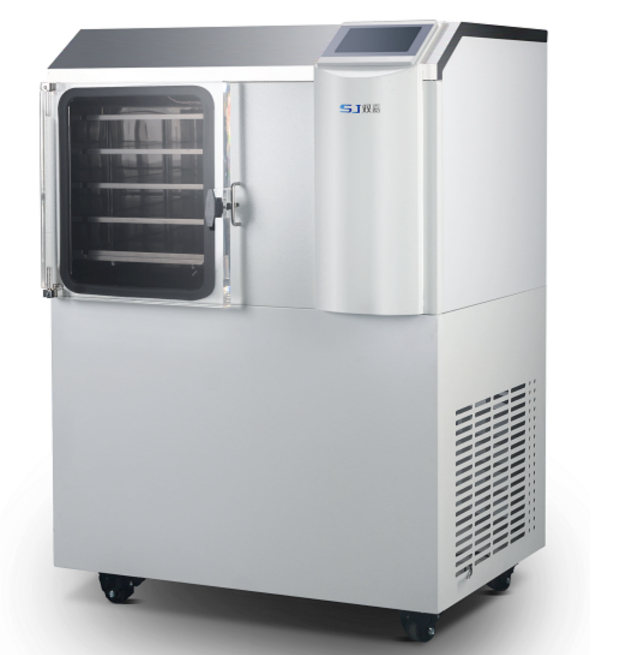

Creator 4S Research FD

Name: Creator 4S Research FD
Brand: SJ Scientific Ltd.
Availability: InStock

Pilot Freeze Dryers

Temp control; Vacuum control; Freeze dryer Recipe. Temp ranged:-50 (or -60C)to 65C; shelf areas from 0.48 m²

Flexible Capacity: Ice condenser performance from 4 kg to 16 kg.
Precision Shelves: Temperature-controlled shelf areas from 0.12 m² to 1.2 m².
Advanced Monitoring: Full range of PAT tools for data-driven process optimization.

Custom Solutions: Tailored options to meet specific pharmaceutical and biotech requirements.

Creator 4S(Max)/T

	Creator 4S(T)	Creator 4S Max(T)

Shelve Specification
Shelf size(mm)	300 x400 (Top stopper type 250×450)	300 x400 (Top stopper type 250×450)
No. of Shelves	4+1	4+1
Shelf Temperature Control(°C):	-50℃ to 60℃	-50℃ to 60℃
Lowest Shelf temperature(50Hz/60Hz,℃)	≤-50℃	≤-60℃
Temperature Control Accuracy	±0.5℃	±0.5℃
Shelf Temperature Cooling rate(from 20 to -40℃)	≤60min	≤40min
Shelves Temperature uniformity(°C)	±1℃	±1℃
Shelves distance	60mm	60mm
Material of Shelves	SS 304(SS316 optional)
Vials load capacity(dia 16mm)		1680pcs (dia 16mm);960pcs(dia 22mm)
Vials load capacity(dia 22mm)
Condenser specification
Condenser Lowest Temperature ℃	≤-65℃	≤-85℃
Condenser Temperature Cooling rate(from 20 to -40℃)	≤30min	≤30min
Ice capacity in 24h (L)	5 L
Max ice condenser (L)	8L
Condenser surface	-	-
Condenser struction	Stainless Coils ,separated chamber
Refrige System Specification
Compressor	1 pc Tecumseh	2 pc embraco
Compressor power	3HP	1.5HP/ pc
Cooling	Air cooling
Shelves Cooling	silicon oil recycling (5cs)
Condenser cooling	Direct cooling
Vacuum system
Vacuum Gauge	thermocouple vacuum gauge
*optional CM gauge	The pressure difference between the CM and the Pirani to determine the end point of freeze-drying
Lowest Pressure	<1 Pa
Vacuum control range	1 to 50 Pa
Vacuum Control mode	Gas permeation mode: solenoid valve + micro valve,automatic program control.
Vacuum pump	DRV 16 (10m³ /h) with Mist Filter
Recycling system and Heating
Recycling pump	SJ stainless magnetic pump
Heater	0.3kw *2(One main and one backup)
Heater protection	Over heater protecter
*top stopper system optional	for loading vials
Control system
PLC	PLC
Touch display	7 inch touch display
Control	Auto/Semi Auto/Manually
Machine equipment
Rated power	Required 3.5kw(50/60hz，220V-240V)	Required 3.5kw(50/60hz，220V-240V)
Mashine struction	Integrated (with the vacuum pump inside the machine).	vacuum pump outside the mashine
size（mm):	(Appro)W880D700H1220 vacuum pump inside	(Appro)W880D700H1220 vacuum pump inside
weight(Kg):	(Appro) 300 kg	320kg
Package size	94010401440	94010401440 +vacuum pump(690270290)
Other requirement	Contact us for more detail	Contact us for more detail
