# Why Polymer Gels Fail During Freeze-Drying: Supercooling, Vitrification and Collapse Explained

# Freeze-drying Issues of Polymer Gels
## Typical Phenomena After Entering Vitrification During Primary Drying

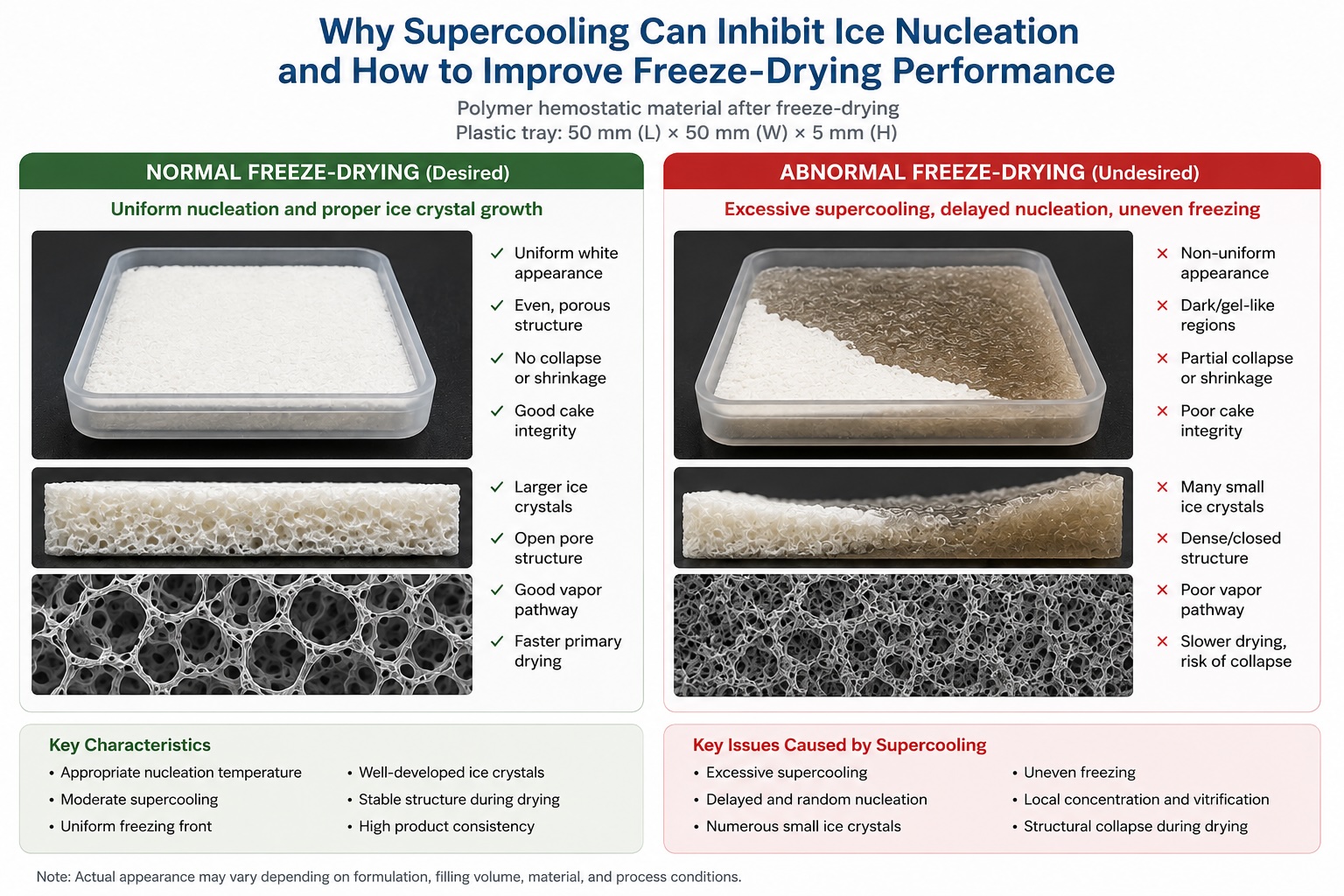

If vitrification truly occurs, the phenomena exhibited after entering primary drying are completely different from those of normal ice crystal freezing.
​
### Products After Normal Freezing

Ice crystals + concentrated phase

plaintext

After sublimation:

Pores left at the positions of ice crystals

↓

Formation of white porous structure

↓

Loose appearance

plaintext

### Vitrified Products

Insufficient ice crystal formation

↓

Formation of amorphous glassy solid

↓

Lack of sublimation pores

plaintext

The following are usually observed after drying starts:
#### 1. Local Transparency and Shining
Normal freeze-drying:

White

Powdery

Spongy

plaintext

Vitrified areas:

Translucent

Transparent

Shining

plaintext

Many operators first impression is:
> Why is this area wet?
​
In fact, it is not necessarily liquid, but an amorphous phase.
​
#### 2. Occurrence of Gel-like Areas
This is most consistent with the customer's description.
After entering primary drying:

Rise in product temperature

↓

Vitrified state starts to soften

↓

Decrease in viscosity

↓

Local flow

plaintext

Characterized by:
- Dark color
- Shining
- Gel-like texture
- Moist feeling
​
Resembling:
- Jelly
- Molten plastic
​
#### 3. Surface Collapse
Normal products:

□□□□□

□□□□□

□□□□□

plaintext

Vitrified collapse:

▃▃▃▃▃

▂▂▂▂▂

plaintext

Significant volume shrinkage occurs.
​
#### 4. Darkened Areas First Appearing at the Edges
Because the edges are most significantly heated.
Common observations:

□□□□□

□■■■□

□□□□□

plaintext

Or:

■■■■■

□□□□□

■■■■■

plaintext

The dark areas gradually expand.
​
#### 5. Poor Vacuum Performance
Due to the lack of ice crystal pores.
Normal situation:

Sublimation of ice crystals

↓

Formation of pores

↓

Easy release of vapor

plaintext

Vitrified state:

Few pores

↓

Difficult vapor diffusion

↓

High product resistance

plaintext

Possible occurrences:
- Extremely long drying time
- Increase in product temperature
- Pressure fluctuations
​
#### 6. Poor Rehydration Property in the Final Product
Normal freeze-drying:

Addition of water

↓

Rapid absorption

plaintext

Vitrified and collapsed products:

Addition of water

↓

Surface wetting

↓

Difficult penetration into the interior

plaintext

## Judgment on the Current Case
Based on the current description, it is unlikely that the entire product has entered a vitrified state.
Reasons:
- Products loaded first have a good morphology
- Products loaded later have a poor morphology
​
If vitrification is caused by the formulation itself:

All samples

Show problems simultaneously

plaintext

However, the current situation is:

First loaded

Normal

Later loaded

Abnormal

plaintext

This is more likely a problem caused by different freezing histories.
​
### Scenario A (Highest Probability)
Supercooling → inconsistent nucleation

Tray A

Nucleation completed at -16℃

Tray B

Still supercooled at -16℃

plaintext

During subsequent annealing:

A: Normal

B: Local gelation

plaintext

### Scenario B
The annealing temperature of -25℃ is close to or exceeds Tc (Collapse Temperature).
Thus:

Samples with sufficient freezing first

Can still hold up

Samples with insufficient freezing later

Collapse directly

plaintext

## Suggestions for Further Confirmation
Key confirmation points:
**Do the dark gel-like areas appear during the -25℃ annealing stage, or do they gradually appear only after vacuuming?**
​
If:
- Appear during annealing → more inclined to freezing/vitrification issues
- Appear only after vacuuming → more inclined to collapse caused by Tc exceeding the limit
​
This information can narrow down the cause to more than 80%.
​
Due to the inaccuracy of DSC measurement, this annealing temperature is highly undesirable.
