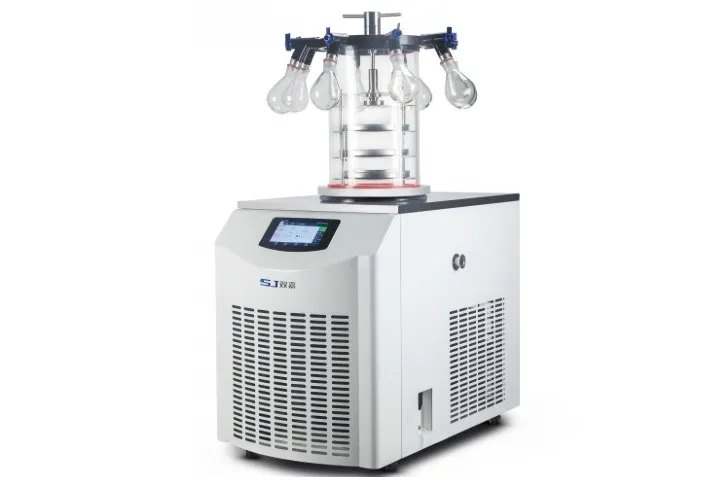

SJ-Pioneer 6L Lab Freeze Dryer

Model designation: SJ-Pioneer 6L is the primary public model. SJIA-Pioneer 6L may appear in factory records, nameplates, quotations, or earlier technical documents; both refer to the same SJIALAB equipment model.

the Pioneer laboratory freeze-dryer’s performance, stability, and control system all reach the top industry standards:

• Ice Capacity range from 2L to 12L
• Condenser Temperature:-60℃,-85℃ or -105 ℃ to meet a variety of applications
• 7 inch touch-control system,simple operation.
• Display Critical data: condenser temperature,sample temperautre and vacuum;display graph and data recording.

• vacuum and temperature correction to ensure long-term accuracy in use.

• Power-off auto-recovery function: Allows customers to set the power-off restart time Alarm and prompt functions to prevent misoperation.
• *Optional mobile phone/computer remote monitoring.

Pioneer 6L-60

Pioneer 6L-60
condenser temperature	-60℃(-80℃/-100℃ check below)
Ice condenser capacity	6L/24h
Dimension(mm)	518*860*707(without chamber)
Vacuum pressure(Pa	＜1Pa (standard＜5Pa)
vacuum pump	2XZ-4(4L/S)
*optional vacuum pump	DRV-10(10³/h),,low noisy and better performance
*vacuum control(optional)
Refrige system	Auto Cascade
Defrost	Heating coil
Rated power	1200w
Net weigth(Appro	(without vacuum pump,vacuum pump 20kg)

Pioneer 6L-80

condenser temperature	-85℃
Ice condenser capacity	6L/24h
Dimension(mm)	518*860*707(without chamber)
Vacuum pressure(Pa	＜1Pa (standard＜5Pa)
vacuum pump	2XZ-4(4L/S)
*optional vacuum pump	DRV-10(10³/h),,low noisy and better performance
*vacuum control(optional)
Refrige system	Auto Cascade
Defrost	Heating coil
Rated power	1800w
Net weigth(Appro	(without vacuum pump,vacuum pump 20kg)
