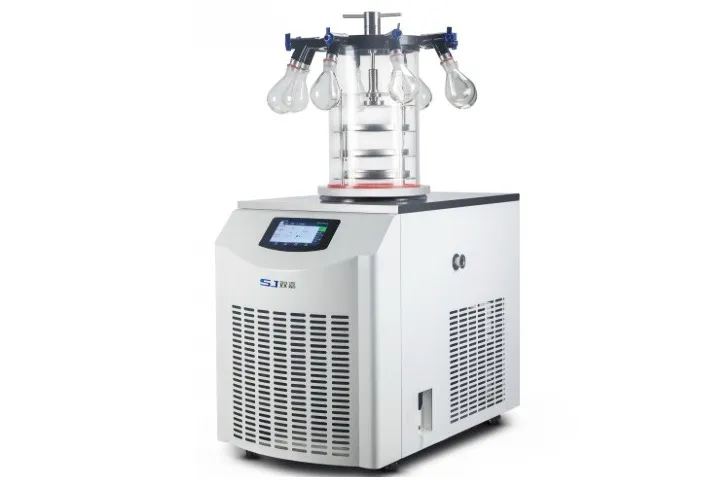

High-capacity 12L laboratory freeze dryer for larger sample loads, scale-up studies, and research lyophilization.
Pioneer Technical features
Based on SJ 14 years of experience and technology in the research, development and production of freeze-drying machines, the Pioneer laboratory freeze-dryer’s performance, stability, and control system all reach the top industry standards:
Ice Capacity range from 2L to 12L
Condenser Temperature:-60℃,-85℃ or -105 ℃ to meet a variety of applications
7 inch touch-control system,simple operation.
Display Critical data: condenser temperature,sample temperautre and vacuum;display graph and data recording. vacuum and temperature correction to ensure long-term accuracy in use.
Power-off auto-recovery function: Allows customers to set the power-off restart time Alarm and prompt functions to prevent mis-operation.
Optional mobile phone/computer remote monitoring.
Ice Condenser
304 stainless steel construction(Teflon coating for corrosion protection optional ) InnerCoil or outside Coil Optional corrosion-resistant coating One-touch electric defrosting Automatic isolation valves for condenser and vacuum pump Prevents oil backflow and system contamination
Vacuum System
Electrically actuated vent solenoid valve between condenser and pump
Automatic vacuum pump start/stop to prevent liquid ingress
Integrated vacuum filter for pump protection
High-precision vacuum sensor
Programmable vacuum control via gas inlet regulation
