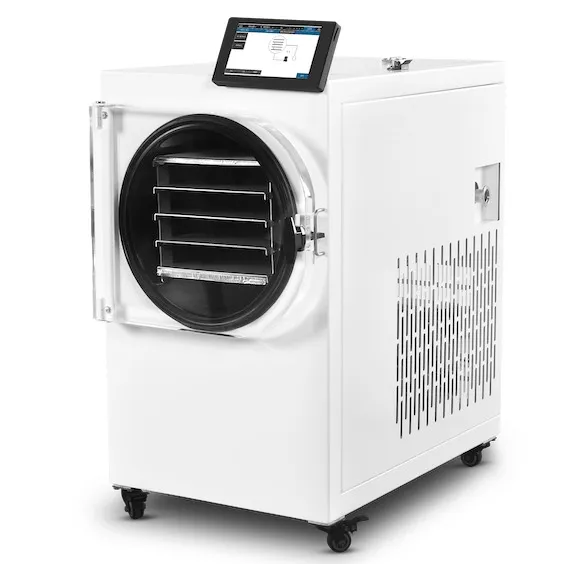

SJ-05H Food Freeze Dryer - 5-7 kg/batch

Model designation: SJ-05H is the primary public model. SJIA-05H may appear in factory records, nameplates, quotations, or earlier technical documents; both refer to the same SJIALAB equipment model.

SJ-05H food freeze dryer overview

The SJ-05H is rated for 5-7 kg/batch of reference fresh material and provides 0.48 m2 of usable tray area. The most compact H-series choice for households, recipe trials, farm samples, and very small specialty-food batches.

It is best considered for entry testing and low-volume production. Typical applications include fruit slices, candy, herbs, meal samples, and pet-treat trials. The actual fresh load varies with product density, water content, cut size, tray fill depth, and the drying recipe.

Key specifications

How to interpret the batch capacity

The capacity is a sizing reference, not a guaranteed load for every food. A thin layer of sliced fruit dries differently from a deep tray of puree, cooked rice, meat, or pet food. For reliable model selection, compare usable tray area and water load as well as kilograms per batch.

Where SJ-05H fits in the range

SJ-05H occupies a specific step in the H-series small food freeze dryer range. For the nearest capacity choices, compare SJ-08H (8-12 kg/batch). The series comparison page shows the full capacity progression.

What to confirm before ordering

• Product type, slice or piece thickness, and expected fresh load per cycle
• Required electrical supply and local frequency
• Preferred condenser-temperature configuration and vacuum-pump arrangement
• Available floor space, ventilation, drainage, and cleaning workflow
• Target residual moisture, packaging method, and expected batches per week

SJ-05H FAQ

Is 5-7 kg/batch the finished dry-product weight?

No. It is a reference fresh-material load. Finished weight depends mainly on the starting moisture content and the final moisture target.

Can SJ-05H process different foods?

Yes. The equipment can support multiple food categories, but each product needs its own preparation, tray loading, freezing method, cycle settings, cleaning, and packaging plan.

Food freeze-drying guides

Use the food freeze dryer selection guide to compare H, commercial H, and FFD systems. For process planning, read the food freeze-drying process guide.

Freeze dryer machine for home and micro-production use

Buyers searching for a freeze dryer machine for home often need a compact food unit rather than a laboratory manifold dryer. SJ-05H is the entry H-series model for household preservation, farm samples, recipe testing, and low-volume food work. Confirm site power, ventilation, pump arrangement, tray loading, packaging, and expected batches per week before selection.
