Small Home Food Freeze Dryer
Small Food Freeze Dryer
Food freeze dryer range for home use, pilot kitchens, and small-batch production, covering 5kg to 30kg batch capacities.
Developed specifically for the freeze-drying of small food items has multiple commonly used freeze-drying processes built in, and it is easy to use.

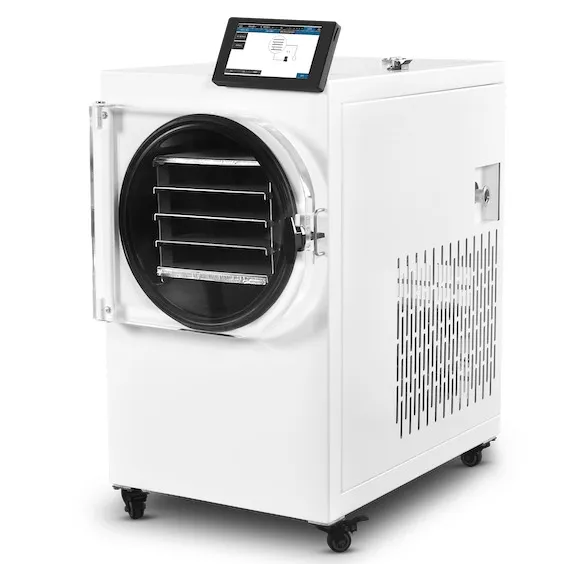

SJ-05H 5-7kg food Freeze Dryer with IOT remote control
 |  |
Size without display(W x D x H): | 450mmx697mmx785m | 17.7 x 27.4 x 30.9(inch) |
Load Capacity: | 5-7kg | 10-15lbs |
Power | 220v 10A,or 110V 20A | |
Tray: | 4pcs | 4pcs |
Tray size(W x L x H): | 220mm x 550mm x20mm | 8.66 x 21.65 x0.79inch |
weight: | 60kg | 128lbs |
Control | 7inch touch-screen display | |
Condenser Temperature: | -40℃ or -60℃ | -40℉ or -76℉ |
Package size: | 99.5X61.5X109(L x W x H)cm |
SJ-08H 12kg food Freeze Dryer with IOT remote control
 |  |
Size without display(W x D x H): | 560mmx814mmx935m | 22 x 32 x 36.81(inch) |
Load Capacity: | 8-12kg | 17-26 lbs |
Power | 220v 15A,or 110V 20A | |
Tray: | 5pcs | 5pcs |
Tray size(W x L x H): | 265mm x 612mm x20mm | 10.43 x 24 x0.79inch |
weight: | 90kg | 198lbs |
Control | 7inch touch-screen display | |
Condenser Temperature: | -40℃ or -60℃ | -40℉ or -76℉ |
SJ-10H Smart 10-15kg Food Freeze Dryer
 |  |
Size without display(W x D x H): | 560mmx814mmx935m | 22 x 32 x 36.81(inch) |
Load Capacity: | 10-15kg | 22-33lbs |
Power | 220v 15A,or 110V 20A | |
Tray: | 6pcs | 6pcs |
Tray size(W x L x H): | 265 x612 x 20mm | 10.43 x 24 x0.79inch |
weight: | 95kg | 209lbs |
Control | 7inch touch-screen display | |
Condenser Temperature: | -40℃ or -60℃ | -40℉ or -76℉ |
SJ-13H 20kg Food Freeze Dryer
 |  |
Size without display(W x D x H): | 620mm x980mm x 935mm | |
Load Capacity: | 13-20kg | |
Power | 220v 15A,or 110V 20A | |
Tray: | 7pcs | |
Tray size(W x L x H): | 245 x760 x 20mm | |
weight: | 115kg | |
Control | 7inch touch-screen display | |
Condenser Temperature: | -40℃ or -60℃ |
SJ-15H 22kg Food Freeze Dryer
 |  |
Size (W x D x H): 620x980x935mm
Max Load Capacity: 22kg
Power Required 220v 50/60hz single phase 18A
Shelves No.s: 7pcs
Total Shelves loading Area(sq m): 1.45m2
Trays No.s: 7pcs
Tray size W x L x H): 265 mm x 780 mm x20mm
Weight: approximate 135kg
Control system 7 inch touch-screen display
Condenser Temperature: ≤-60℃ /-40℃
Compressor: 1.0HP compressor
Vacuum pump : SJ-v24 Control PLC: SJ-PLC
Control Modes: Manu/Auto
Temperature Sensor: PT100
condenser Materail 304 stainless T
rays Material: 304 stainless
Shelves Material : Oxidation Aluminum
package size: 840x1800x1130mm
SJ-20H 30kg Commerial Freeze Dryer
 |  |
Size (W x D x H): 877 mmx 802 mm x 1312mm
Max Load Capacity: 30kg
Power Required 220v 50/60hz single phase 18A
Shelves No.s: 9pcs
Total Shelves loading Area(sq m): 2.21m2
Trays No.s: 9pcs
Tray size W x L x H): 410 mm x 600 mm x20mm
Weight: approximate 220kg
Control system 7 inch touch-screen display
Condenser Temperature: ≤-60℃ /-40℃
Compressor: 1.5HP compressor
Vacuum pump : SJ-v24 Control
PLC: SJ-PLC
Control Modes: Manu/Auto
Temperature Sensor: PT100
condenser Materail 304 stainless
Trays Material: 304 stainless
Shelves Material : Oxidation Aluminum
package size: W 1000 x L 1200 x H1400mm
Related food freeze dryer resources
This H series model is usually used for home freeze drying, recipe trials, small-batch food sales, and early product validation before moving to commercial food freeze dryers.
